Product Description
Product details
| Type | Fire Extinguisher |
| Fire Extinguisher Type | CO2 Based |
| Material | Metal alloy |
| Certification | ISO |
| Capacity | 5Kg |
| Usage/Application | Factory |
| Fire Suppression Type | Fire Extinguisher |

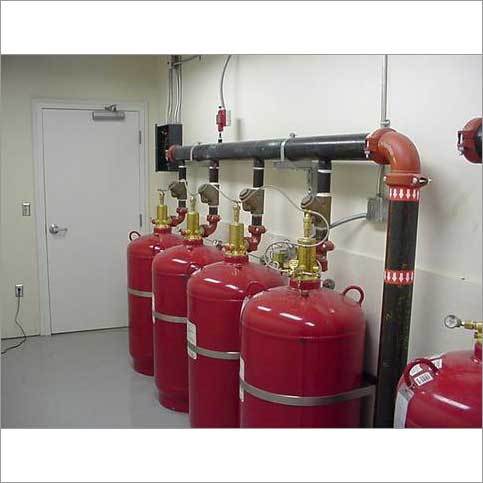

Reliable Fire Suppression for Critical EnvironmentsSpecifically engineered for high-value assets, the FM-200 system offers immediate and effective fire protection for sensitive areas such as server rooms, data centers, and electrical control rooms. Its rapid discharge, zero residue, and environmental safety ensure minimal operational interruption and safe usage around electronics.
Advanced Safety Features and Ease of MaintenanceEquipped with a pressure switch and lock-off mechanism for safety, seamless alloy steel cylinders, and anti-corrosive coating, this system is as durable as it is secure. Its networked control panel allows for flexible installation and easy integration with smoke and heat detectors, ensuring straightforward maintenance and refill processes.
FAQ's of FM-200 Fire Suppression System:
Q: How does the FM-200 Fire Suppression System operate to extinguish fires?
A: The FM-200 system rapidly releases Heptafluoropropane (C3HF7) within 10 seconds when a fire is detected by compatible smoke or heat detectors. The clean agent absorbs heat and interrupts the chemical fire reaction, suppressing Class A, B, and C fires without leaving residue or harming sensitive equipment.
Q: What are the main benefits of using FM-200 in data centers and server rooms?
A: FM-200 is highly effective for sensitive environments because it quickly extinguishes fires while being non-conductive and leaving no residue, ensuring electronic equipment remains unharmed. It also has zero ozone depletion potential and a low global warming impact, supporting environmentally conscious safety standards.
Q: When should the cylinders be refilled or inspected for the FM-200 system?
A: Cylinders should be refilled immediately after activation or discharge. Regular inspections are recommended according to the manufacturer's guidelines, typically at least once a year, to ensure cylinder integrity and system performance throughout its shelf life of up to 30 years.
Q: Where can the FM-200 Fire Suppression System be installed and what types of fires does it address?
A: The system is suitable for a variety of protected spaces such as server rooms, control rooms, telecommunication facilities, electrical panels, and industrial areas. It effectively extinguishes fires involving ordinary combustibles, flammable liquids, and electrical equipment (Class A, B, and C fires).
Q: What is the process for activating the FM-200 system in case of a fire?
A: Upon detection of smoke or heat by the compatible sensors, the networked control panel electrically triggers the solenoid release, opening the valve for agent discharge. The system can also be triggered manually or automatically, depending on configuration and emergency protocols.
Q: How does the FM-200 system ensure environmental safety during and after discharge?
A: The Heptafluoropropane (C3HF7) agent used in FM-200 is a clean, non-toxic substance with zero ozone-depleting effects and low global warming potential. Discharge is rapid and leaves no residue, minimizing environmental and operational impact.
